Main measurement parameter
- Measuring range of AC system insulation resistance to earth: 0-999.9 KΩ
- Measuring range of AC feeder resistance to earth: 0-200 KΩ
- AC voltage measuring: 0-500VAC, 500-1000VAC

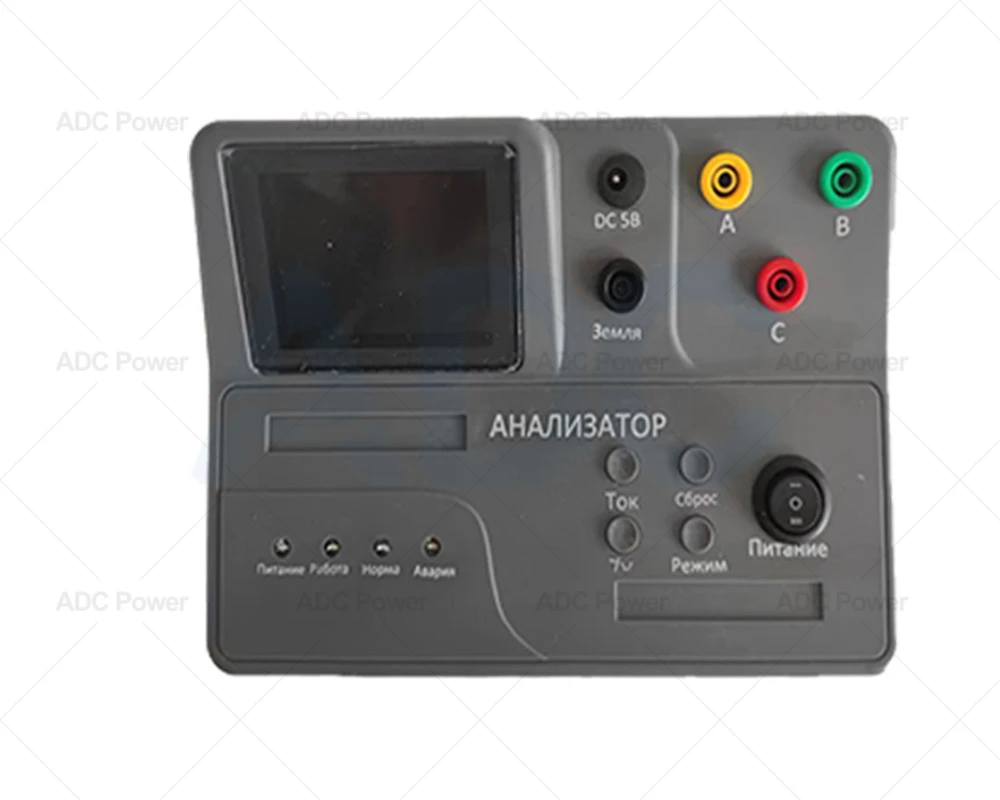

Signal Analyzer

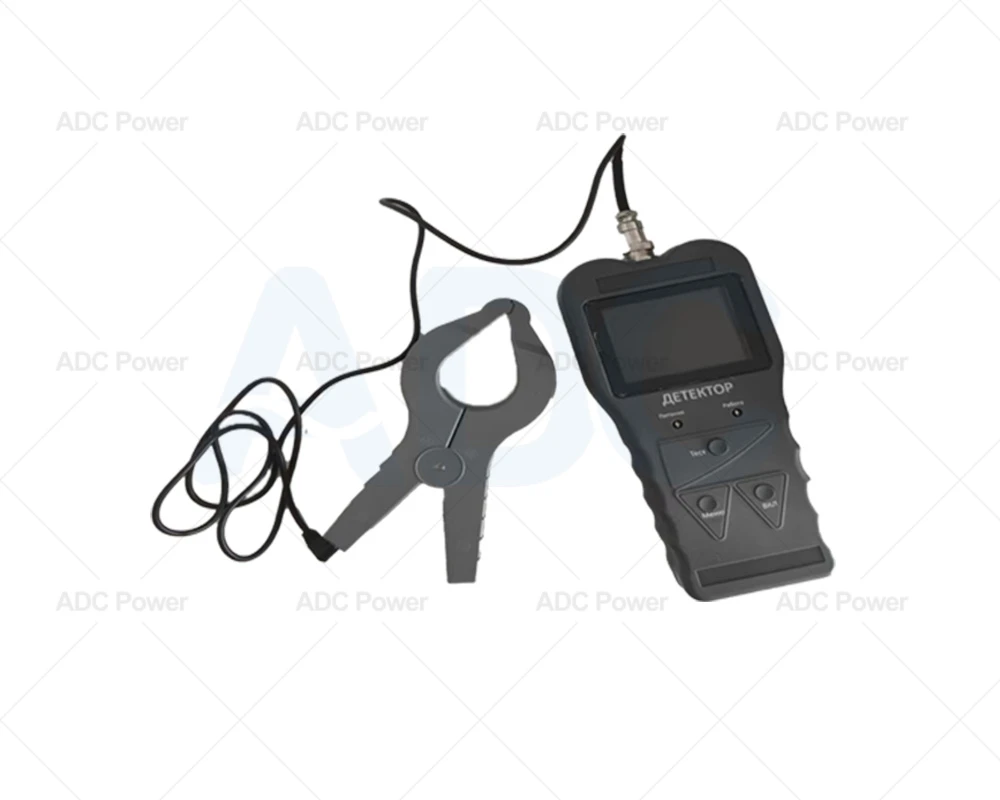

Signal Detector
Detailed Specifications:
Analyzer main specifications
Working environment
Working power: 5VDC power supply from charger
The environment temperature: -20℃~+50℃
Relative humidity: less than or equal to 90%
AC voltage measurement
AC voltage measurement range: 0-500VAC, 500-1000VAC
AC voltage measurement resolution: 0.1V
AC voltage measurement precision : ≤±2%
AC insulation resistance measurement
Insulation resistance measurement range: 0-999.9KΩ
Insulation resistance measurement resolution: 0.1KΩ
Insulation resistance measurement precision: ≤±5%
Insulation resistance alarm range: 0-200 KΩ
Signal amplitude adjustable range
0mA, 0.25mA, 0.5mA, 1mA, 2mA
Signal amplitude frequency range
0.125Hz, 0.25Hz, 0.5Hz, 1.0Hz
Signal waveform type selection
Sinusoid wave and square wave
Work mode
Force signal launch and auto signal launch
Display medium and resolution
TFT, 320×240
Detector main specifications
AC feeder insulation resistance measurement
Insulation resistance measurement range: 0-200KΩ
Insulation resistance measurement resolution: 0.1KΩ
Insulation resistance measurement precision: ≤±10%
Spectral analysis range
Spectral analysis channel number: 1
Spectral analysis frequency range: 0.125Hz–1Hz
Frequency resolution: 0.125Hz
Voltage wave display cycle: 8s
Detects the feeder current range: 0–2A
Current measurement range: -100mA–+100mA
Display medium and resolution: TFT, 320×240
Wireless communication technology
1. Transmission rate: 2Mbps, Due to the air transmission time is short, Greatly reduce the collision phenomenon in the wireless transmission.
2. Multi-frequency point:125, Meet the requirements of multi-point communication and frequency hopping communication.
3. Sub-miniature: built-in 2.4GHz antenna, small size, 15×29mm
4. Low power dissipation: When work in answer mode communication, Fast air transmission and start time, Greatly reduces the current consumption.
